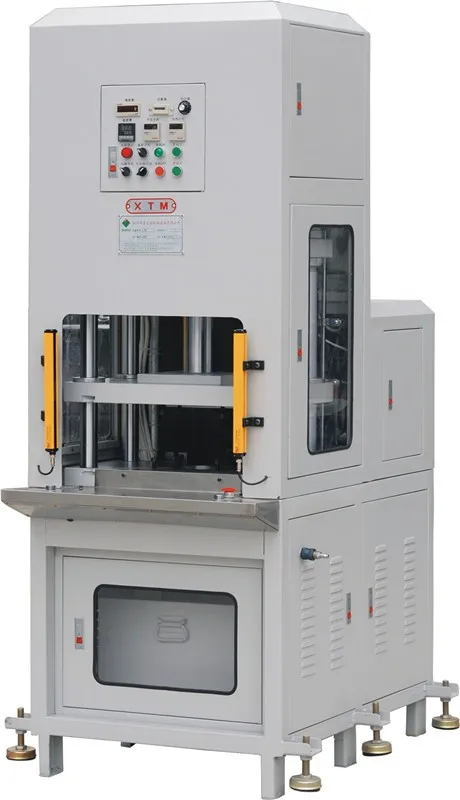

IMD/IMl Automatic hot press molding machine Heat press forming machine

IMD/IMl Automatic hot press molding machine Heat press forming machine

Business Information

  • Made In : unknown
Favorites
  • IMD/IMl Automatic hot press molding machine Heat press forming machine
  • IMD/IMl Automatic hot press molding machine Heat press forming machine
  • IMD/IMl Automatic hot press molding machine Heat press forming machine
  • IMD/IMl Automatic hot press molding machine Heat press forming machine
  • IMD/IMl Automatic hot press molding machine Heat press forming machine
  • IMD/IMl Automatic hot press molding machine Heat press forming machine

Product Features

1 safety design in the round, two hands operation, with emergency button and the upper and lower die, convenient die installation and calibration; at the same time using high sensitivity to the radiation type grating safety protection system, ensure the safety of work;
2 Desktop installed the wheel seat and foot cup, the machine can be easily moved, labor saving and high efficiency;
3 the machine is equipped with an automatic heating device, which is controlled by the original electrical equipment. The preheating and holding time can be set according to different products.
4 oil hydraulic power system is selected by the Taiwan pump, the oil circuit is specially designed, which can reduce the power consumption in standby time, in order to save energy, stable performance and low noise;
5 horsepower requirements are small, pressure, stroke, speed can be adjusted, but also according to customer requirements, changes in the design of the loop to achieve the purpose of the work;
6. The hydraulic system is the built-in save the use of space, optional water cooler, hydraulic oil is warming up slowly, the fault is less and the efficiency is high, can be used for long time working, long service life;
7. Hydraulic cylinder rebound height of the travel switch in position and with the cylinder adjusting nut and the circuit timer, according to different appropriate adjustments can play extremely work efficiency;

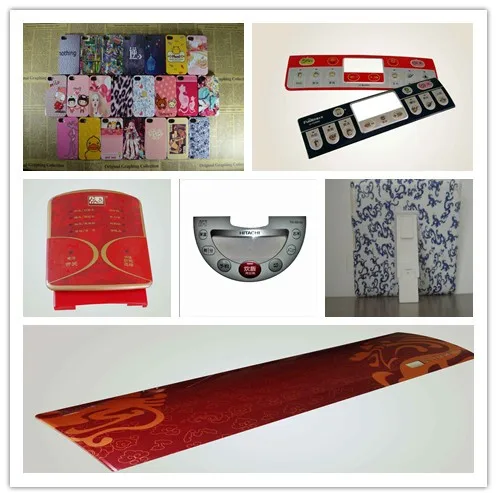

8 main application areas are as follows:
Appliance industry: electric rice cooker, washing machine, microwave oven, air conditioner, refrigerator and other control panel;
Electronics industry: MP3, MP4, VCD, DVD, calculator, electronic notebook, digital camera, such as the face shell and signs;
The automotive industry: dashboard, air-conditioning panel, lamp shell, interiors, logo etc.;
Computer industry: keyboard, mouse, surface shell;
Communications: mobile phone keys, mobile phone lens, mobile phone and fixed phone, PHS color display panel, window lens;



Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: XTM
  • Model Number: XTM-109S-50T
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Norminal force output: 50T
  • Maximum hydraulic working pressure:21Mpa
  • Biggest operational height: 400mm
  • Height of table above floor: 780mm
  • Maximum stroke of the ram: 300mm
  • Dimensions of table: 1000mm*600mm
  • Motor+power=work rate: 14.2Kw
  • Overal dimensions of the machine:1300mm*1700mm*2480mm

Packaging & Delivery

Packaging Details:packing by wooden boxes
Delivery Detail:30 days

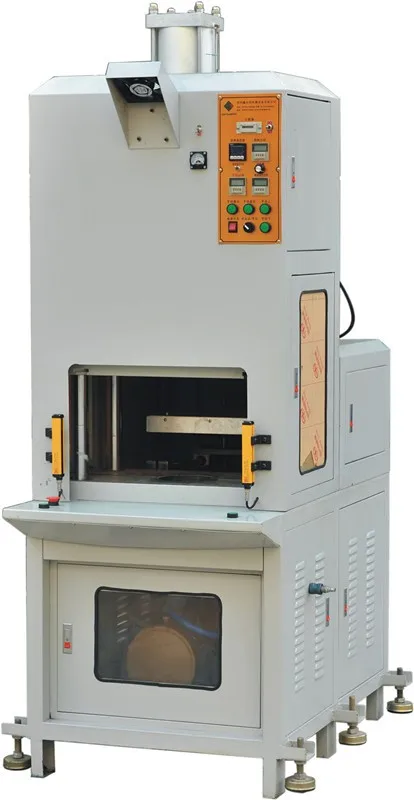

IMD hot press forming machine
Product introduction:




(IMD hot press molding machine, mold decoration and inlay injection molding, IML hot press molding machine, hydraulic IMD hot press molding machine, IMD equipment
The IMD molding machine is my company for IMD industry (mold decorative mosaic injection technology) and film, pet, PVC sheet forming and the development of professional equipment, (Patent No. 200930164866.6), using a uniform way of far infrared radiation heating sheet. After constant temperature device, cylinder pressure to make instant molding.
More details:
This machine adopts four-column.three-plate open space, four with the precision sewing guide sleeve, high stability, suitable for different products processing (upper and lower working in parallel tolerance +);
1 safety design in the round, two hands operation, with emergency button and the upper and lower die, convenient die installation and calibration; at the same time using high sensitivity to the radiation type grating safety protection system, ensure the safety of work;
2 Desktop installed the wheel seat and foot cup, the machine can be easily moved, labor saving and high efficiency;
3 the machine is equipped with an automatic heating device, which is controlled by the original electrical equipment. The preheating and holding time can be set according to different products.
4 oil hydraulic power system is selected by the Taiwan pump, the oil circuit is specially designed, which can reduce the power consumption in standby time, in order to save energy, stable performance and low noise;
5 horsepower requirements are small, pressure, stroke, speed can be adjusted, but also according to customer requirements, changes in the design of the loop to achieve the purpose of the work;
6. The hydraulic system is the built-in save the use of space, optional water cooler, hydraulic oil is warming up slowly, the fault is less and the efficiency is high, can be used for long time working, long service life;
7. Hydraulic cylinder rebound height of the travel switch in position and with the cylinder adjusting nut and the circuit timer, according to different appropriate adjustments can play extremely work efficiency;

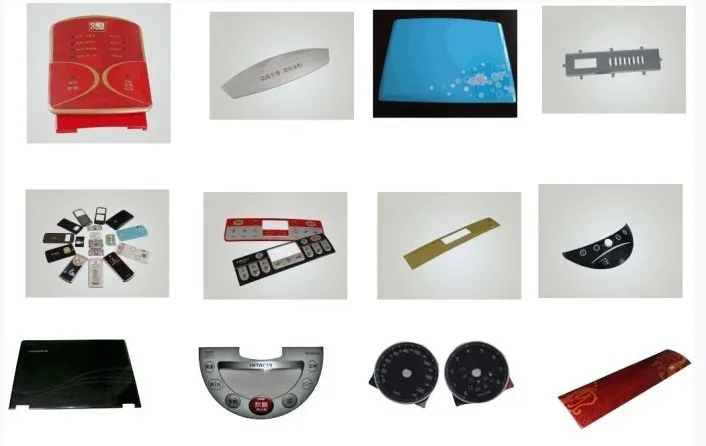

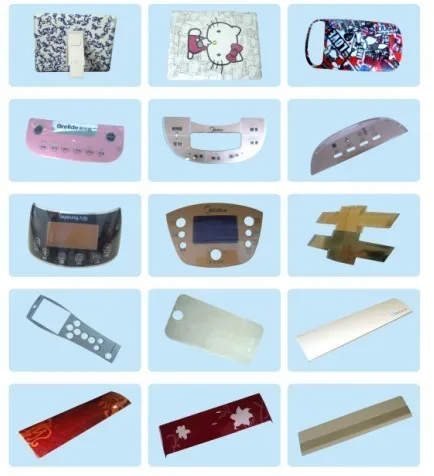

8 main application areas are as follows:
Appliance industry: electric rice cooker, washing machine, microwave oven, air conditioner, refrigerator and other control panel;
Electronics industry: MP3, MP4, VCD, DVD, calculator, electronic notebook, digital camera, such as the face shell and signs;
The automotive industry: dashboard, air-conditioning panel, lamp shell, interiors, logo etc.;
Computer industry: keyboard, mouse, surface shell;
Communications: mobile phone keys, mobile phone lens, mobile phone and fixed phone, PHS color display panel, window lens;
Other industries: medical equipment, cosmetics boxes, decorative boxes, toys, sports and recreation supplies, etc..
