Advantages (1) Moveable, small size, easy operation;
(2) Be easy to change product formula;
(3) Be used to develop new inorganic materials;;
(4) Be used as testing equipment for large scale production;
(5) Be used to produce small scale top grade product.
sodium silicate, frit, glaze, solid and hollow glass microsphere,
high temperature inorganic lubricant, silicon fertilizer, germany car glass printing ink, crystalline glass, denture materials, art glass,
antique jade and so on.

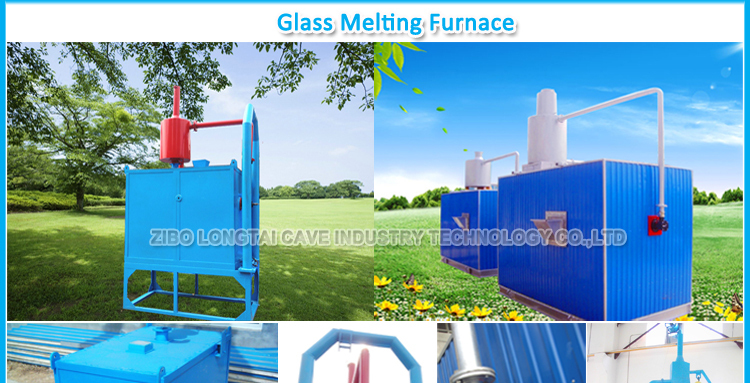

Glass melting furnace Features:
Glass melting furnace is a kind of moveable furnace, which could be used to melt ceramic frit, sodium silicate and glass. This furnace is suitable for the small scale production because of its small volume, small investment and prompt operation.
Production glass types: Auto glass, construction glass, home appliance glass, furniture glass, lamps and lanterns glass, hot bending glass, broken glass, rolled glass, microcrystalline glass, artistic glass, special glass, frit, glass beads, glass ink etc.
Glass melting furnace Structure:
This furnace is developed by our company,the lower structures have melting tank,throat,picking material tank.
It uses high-grade fused zirconium corundum refractory and direct to touch the glass liquid;the upper structure uses
high-soft point silica refractory material to touch the flame directly.
Combustion system is designed with high-pressure air combustion burner, electronic high-voltage ignition and
equipped with metal heat-exchanger.
The fuel is natural gas and civil liquid gas. Air for combustion condition is using secondary air heated by waste
heat to help combustion.
The designed flame radiation temperature is 1500°C. The furnace is whole insulation.
We can install the burners on both sides of furnace or single side depending on the production. The furnace is also equipped with the metal heat exchanger, making good use of oxygen-firing technique to improve the quality of the product and increase the production.
Index for reference:
Fuel: N.G/Liquid Gas
Melting Rate: K
